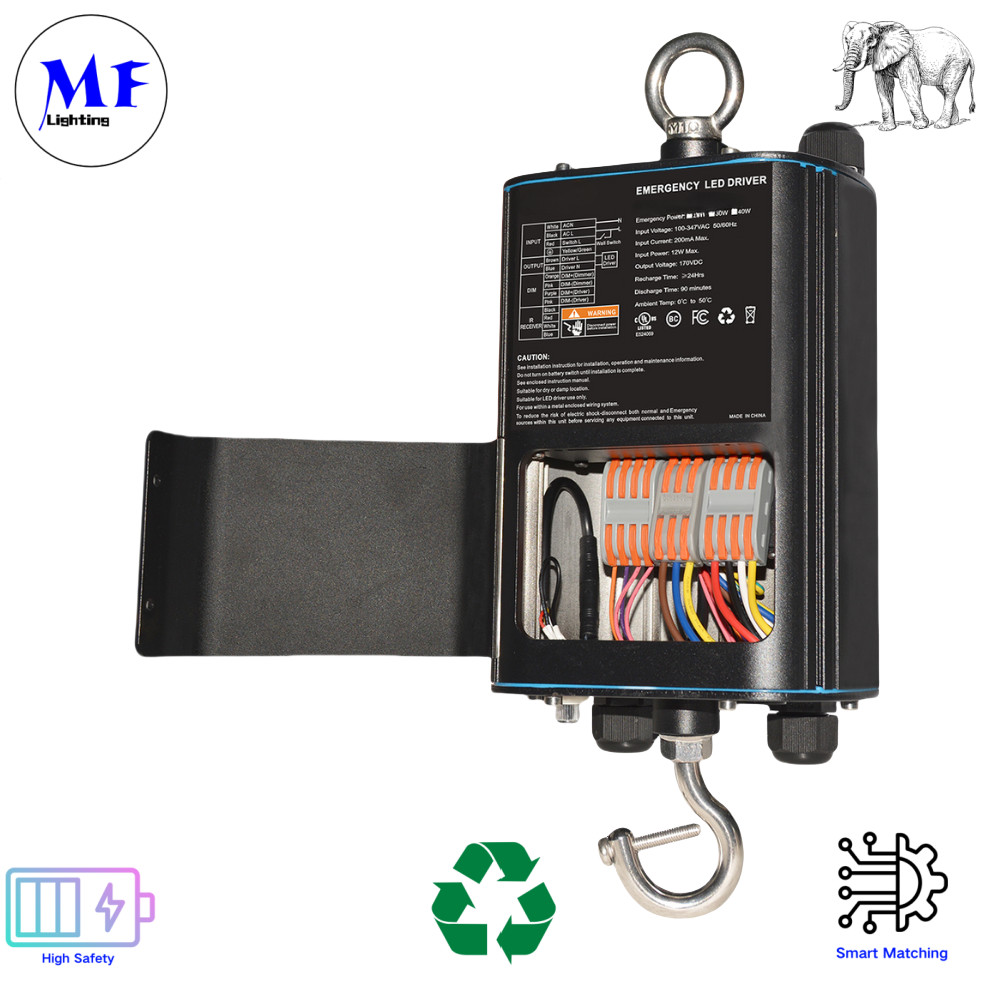

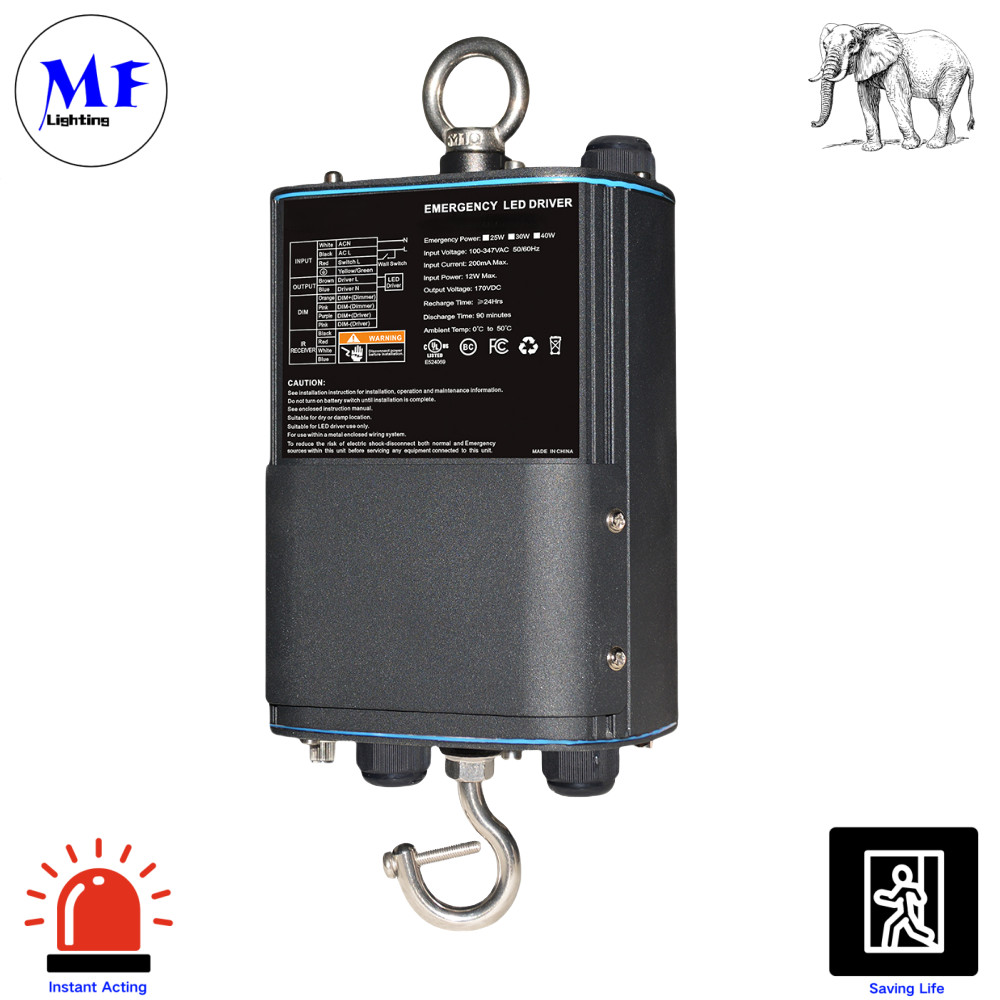

100-277VAC 25W 30W 40W IP66 Backup Ballast LED Emergency Driver For High Bay Light Triproof Light Down Light Ceiling Light Panel Light

製品の説明

Product Description



Factory Price 100-277Vac 25W 30W 40W IP66 Backup Ballast LED Emergency Driver For High Bay Light Triproof Light Down Light Ceiling Light Panel Light





Product Parameters

Input voltage	100-347 Vac 50/60Hz
AC Input current	200mA Max
Input Power Rating	12W max
Output Voltage	170Vdc
Emergency Power	25/30/40W
Recharge Time	24h Hours
Emergency Time	≥1.5H
Discharge Time	90 minute
Battery:	Li-ion
Ambient Temp	32`122F(0~50°C)
Warranty	5 Years
Weight	5.10lbs(2.2kg)

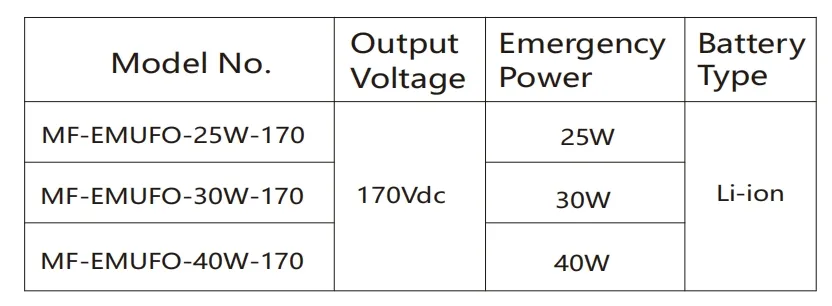

Model No.

Product Features

1. UL Listed for US and Canada
2. Listed to UL924 and tested to CSA C22.2 NO.141 Field or factory installation
3. High voltage output
4. Low energy consumption CEC compliance
5. Constant output power
6. Self-testing
7. Battery: over temperature protection
LED Emergency driver, Panic light ballast,panic emergency powerpack,emergency backup ballast,emergency ballast interter,emergency light kit,Led Emergency Battery Pack,Emergency Converter for triproof light down light ceiling light highbay light panel light

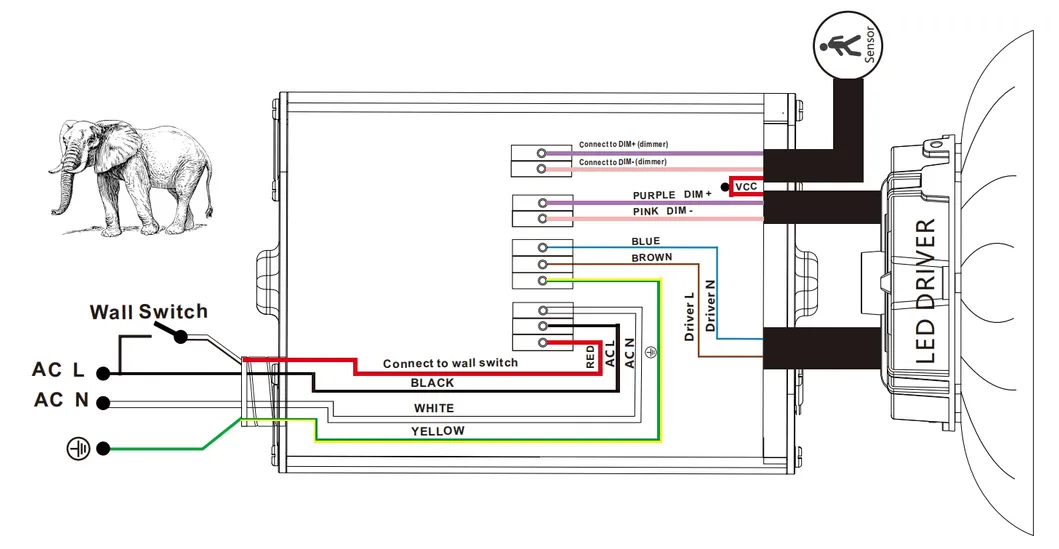

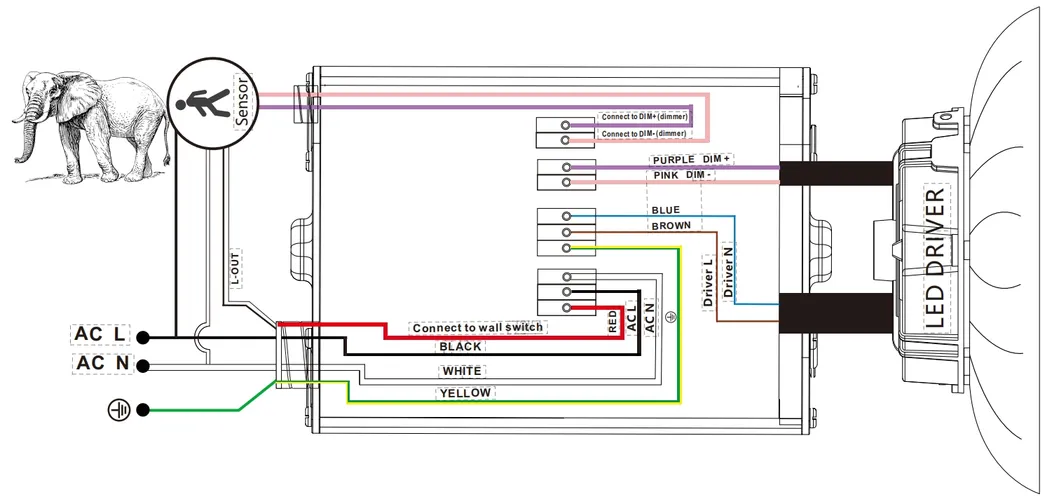

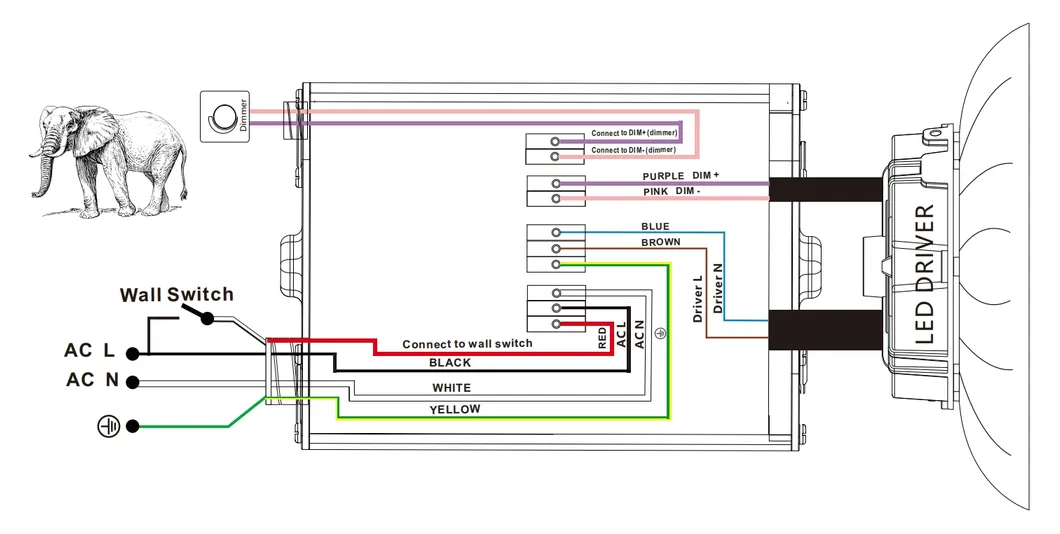

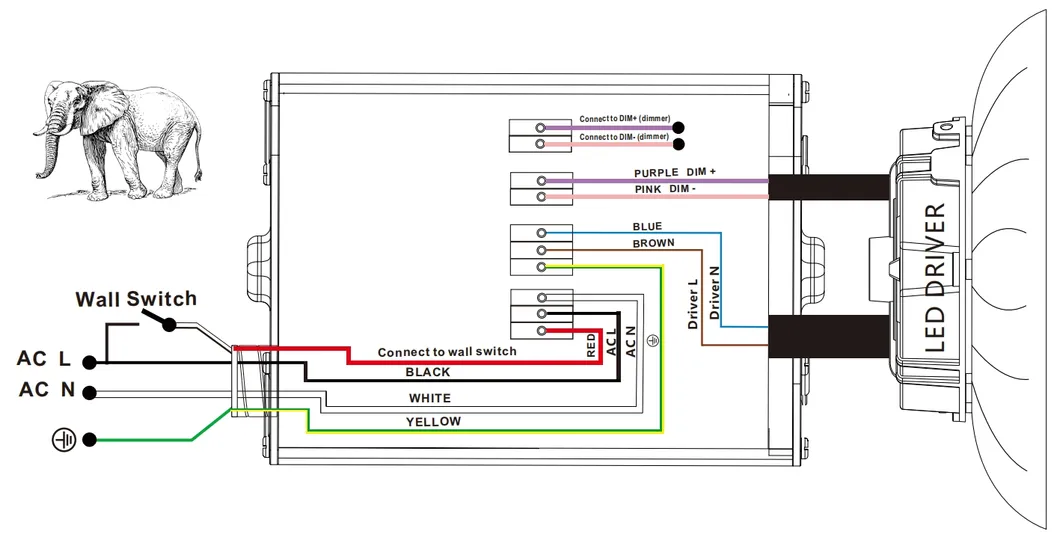

Wiring Diagram

Indicator Light
1. AC Operation, indicator light will keep on
2. Emergency Operation, indicator light flash slowly (light on for 1 seconds, light off for 1 seconds)
3. In a failure, indicator light flash quickly (light on for 0.02 seconds,light off for 0.02 seconds

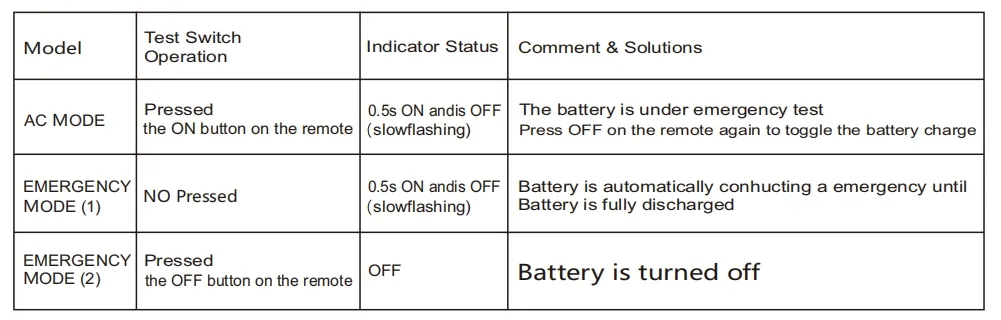

OPERATION(INDICATOR STATUS

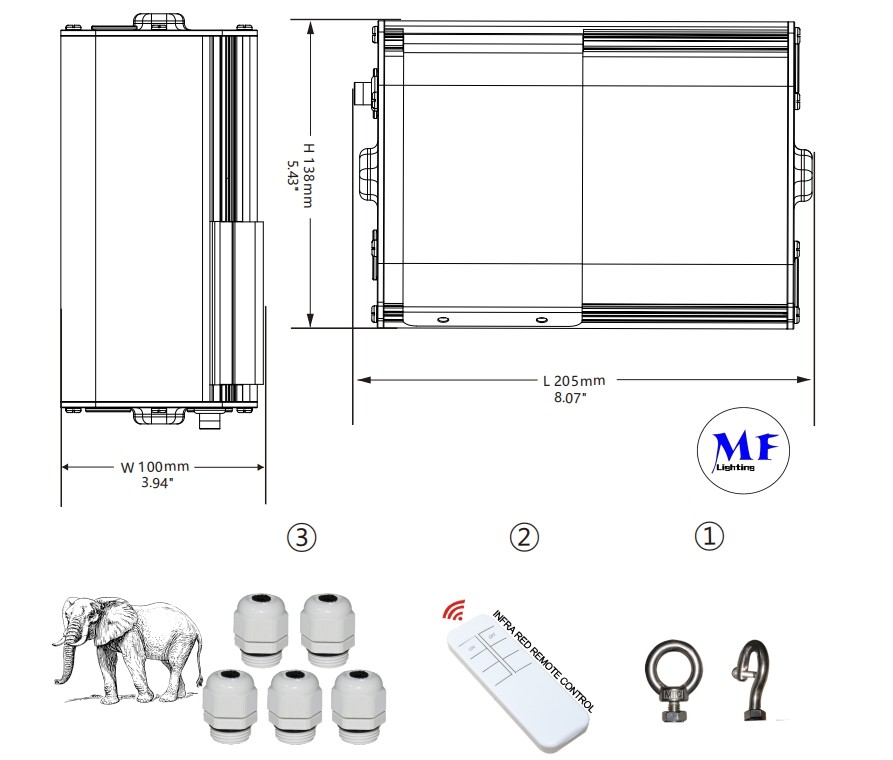

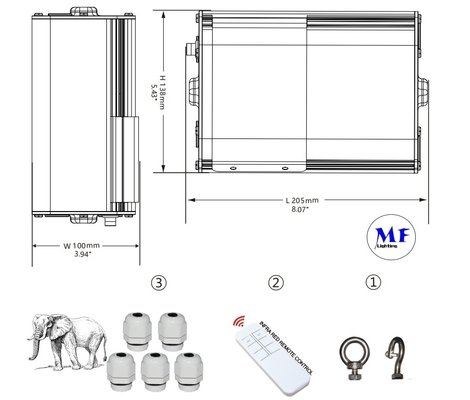

Product Dimensions

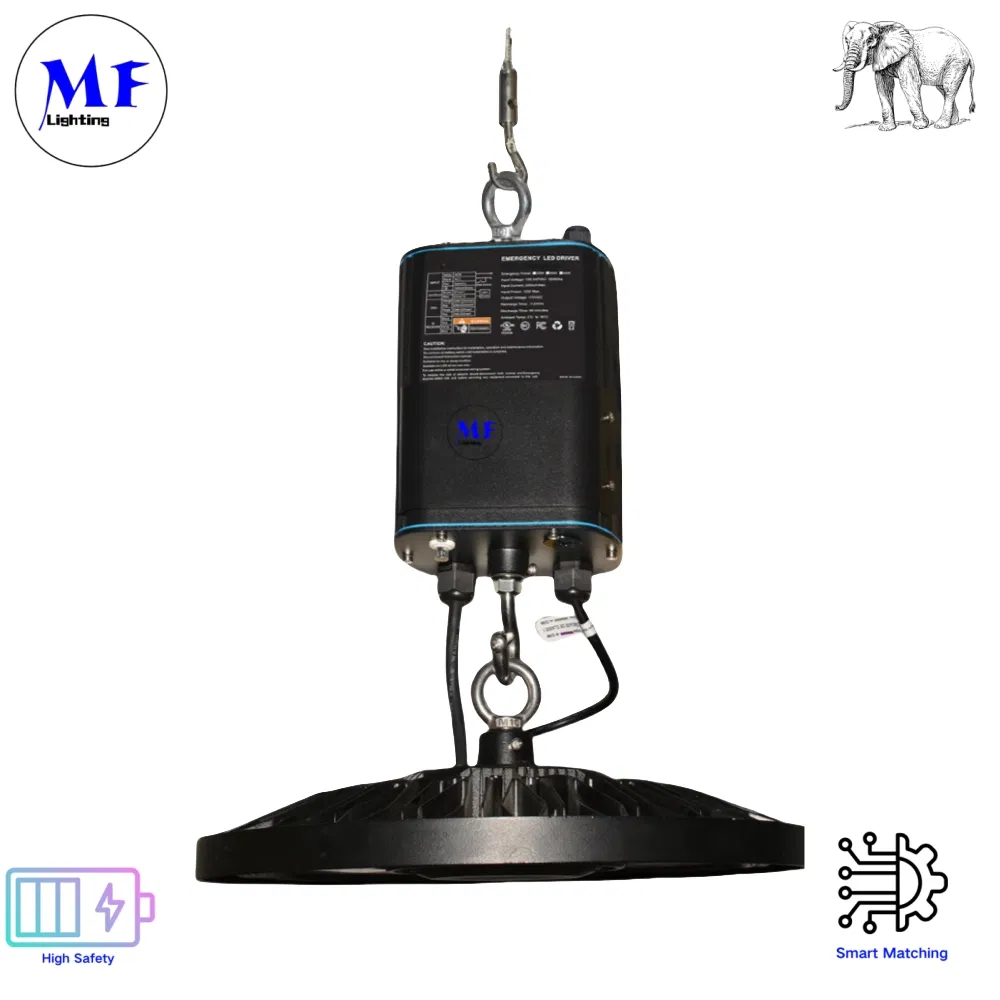

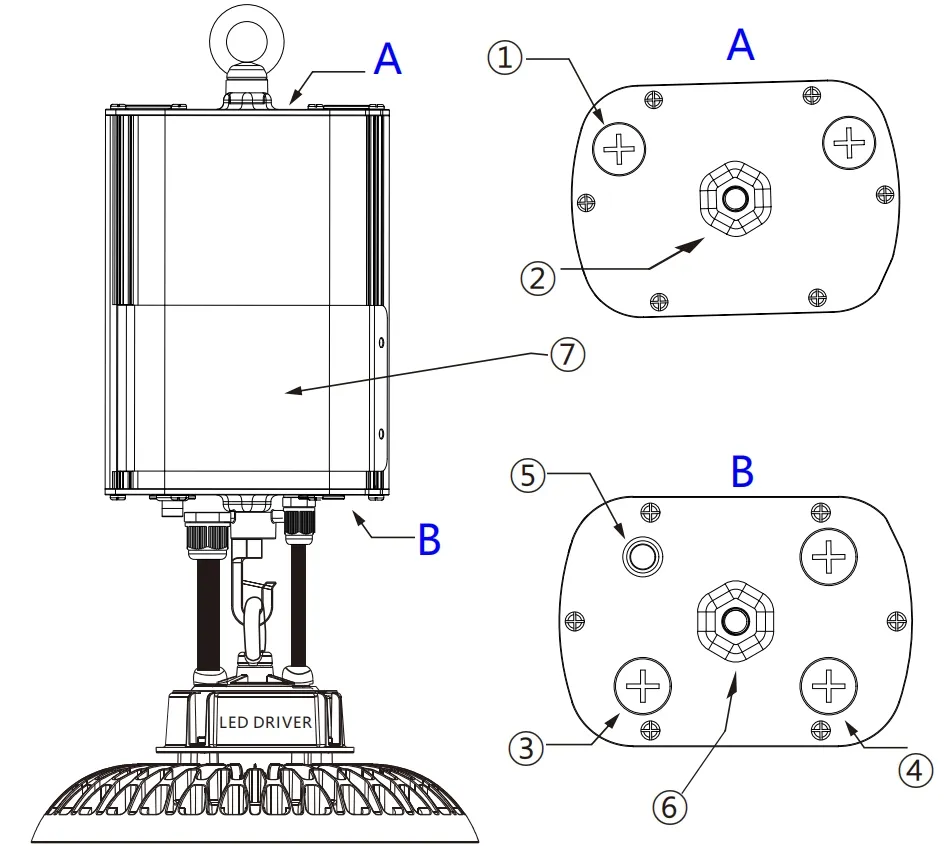

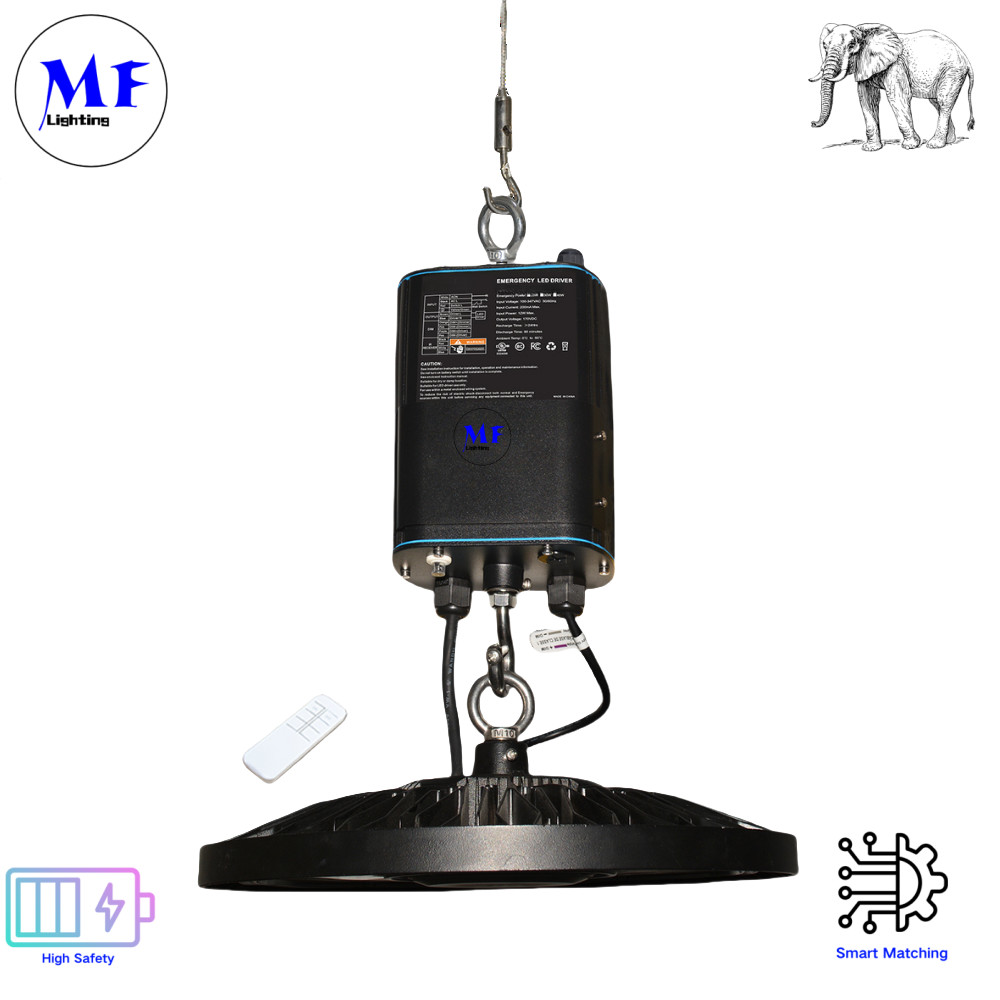

Product Installation

1. AC input wire interface 2. M10 Bolt 3. LED Driver input wire
4. LED Driver dimming wire 5. Signal receiver
6. M10 Hanging Hook Bolt 7. Junction box

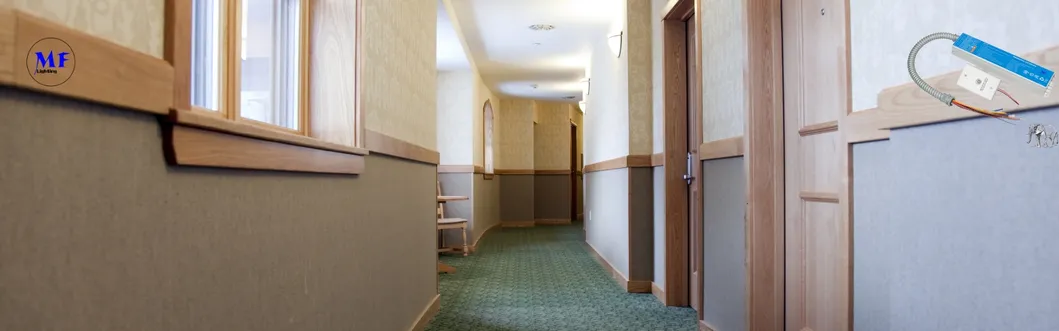

Product Applications

1. Offices: Ensures emergency lighting activation during power outages to maintain illumination in workspaces, corridors, and exits while complying with safety standards.
2. Exhibition Halls & Museums: Powers emergency lighting with <1-second switchover to backup power for critical areas, protecting exhibits and preventing risks from darkness.

3. Hotels & Hospitality: Integrates with fire systems to activate evacuation lighting in public areas and maintain safety lighting in guest rooms during outages.
4. Villas & Residences: Supports smart home emergency lighting by maintaining illumination in key areas (stairs, entrances) during outages and monitoring battery status via apps.
5. Clubs & Entertainment Venues: Enables quick emergency lighting activation in high-energy spaces, prioritizing safe evacuation routes and working with dynamic lighting systems for event safety.

6. Retail & Commercial Spaces: Maintains basic lighting for product displays during outages and links with fire sensors to activate full emergency mode for safe customer evacuation.
7. Transportation & Public Hubs: Meets strict fire safety standards (CE, UL) with 72+ hours backup power for exits and corridors in airports, subways, and other critical infrastructure.

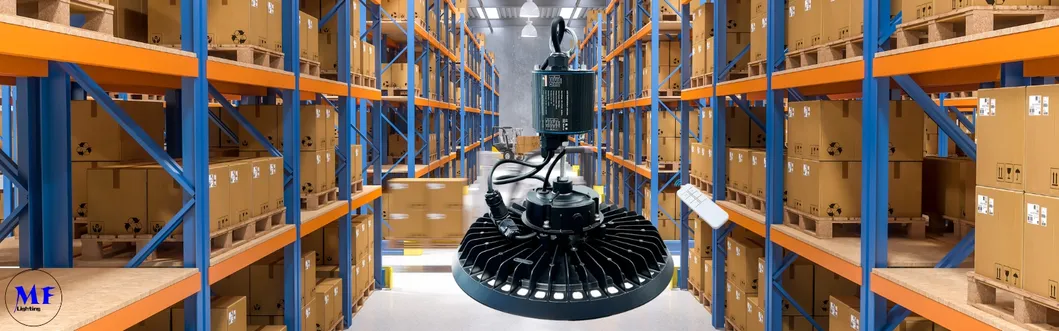

8. Industrial & Warehouses: Provides stable emergency power for high-power LED fixtures with wide voltage input (90-264V), ensuring reliable activation in harsh industrial environments.

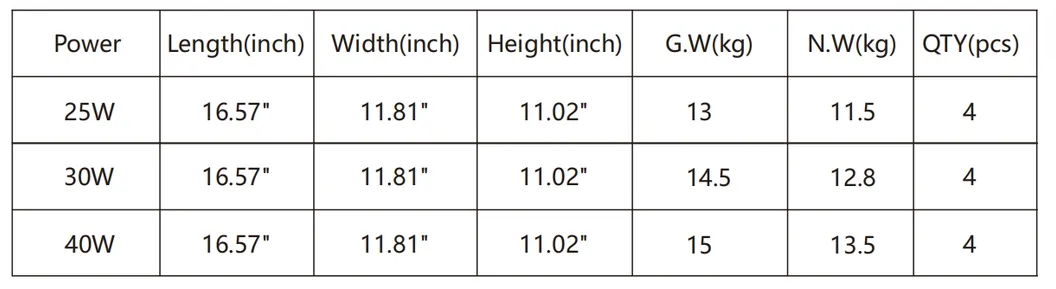

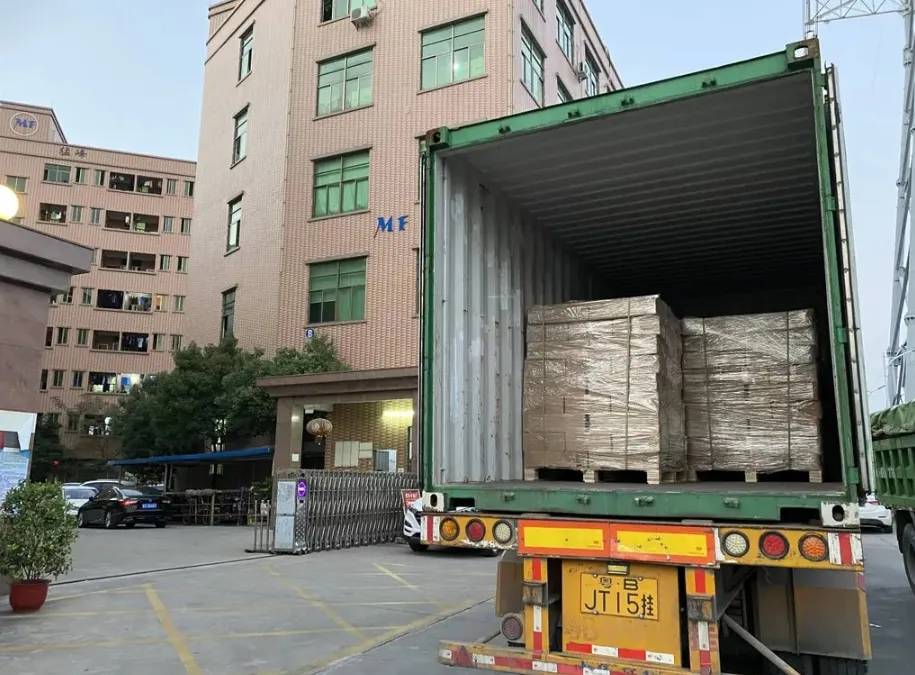

Packageing & Shipping



FAQ:

1. Are you a manufacturer?
   Absolutely, we are a professional manufacturer with 16 years of experience.
   Our products include IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamp, and LED underground lights.

2. What is your main product?
   Our main products are as follows:
   LED Triproof lights/ LED Vapor Tight Lights
   LED High Bay Lights
   LED Flood lgihts
   LED Explosion Proof Lights
   LED Down Lights
   LED underwater lights (swimming pool lights, fountain lights, underwater spotlights)
   LED garden spot/spike lights
   LED inground lights

3. What is the minimum order quantity (MOQ)?
   For customized models, samples should be prepaid. We offer free customized models if the order quantity is more than 1000 pieces.

4. What are the payment options?
   We accept T/T, Western Union, Paypal. Payment terms are 50% advanced payment and 50% balance payment. Our shipping terms are EXW, FOB, and CIF, CNF and DDP

5. What is the delivery time?
   The delivery time is about 5-7 working days for samples and 20-30 working days for mass production, depending on the quantity.

6. How are the products packaged?
   Each piece is packed in an individual color box and then placed in a strong master carton.

7. Why should you choose us?
   1). We offer OEM/ODM services.
   2). We have our own design team.
   3). We offer high-quality products at reasonable prices.
   4). We have no MOQ request.
   5). Our sales team has 12 years of experience in underwater lighting
