Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums
Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums
接触

詳細情報
力: 10W 光束: 300~350mm
ビーム角度: 15°～36° 演色性: Ra≧97
入力電圧: 48VDC ハウジングの色: ブラックホワイト
寸法: ¢38*H149mm トラックタイプ: M20
重さ: 0.36kg 熱伝導率: 226W/mK
ゆがみ率: ≤0.6% ズーム範囲: 15°～36°
回転範囲: 垂直90°、水平355° オプティカルレンズ: 11
色温度: 2700K~4000K
ハイライト:

10W fixed LED contour track light

,

55° shapeable museum track light

,

ultra-high luminous efficiency track light

製品の説明

Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light
Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 0

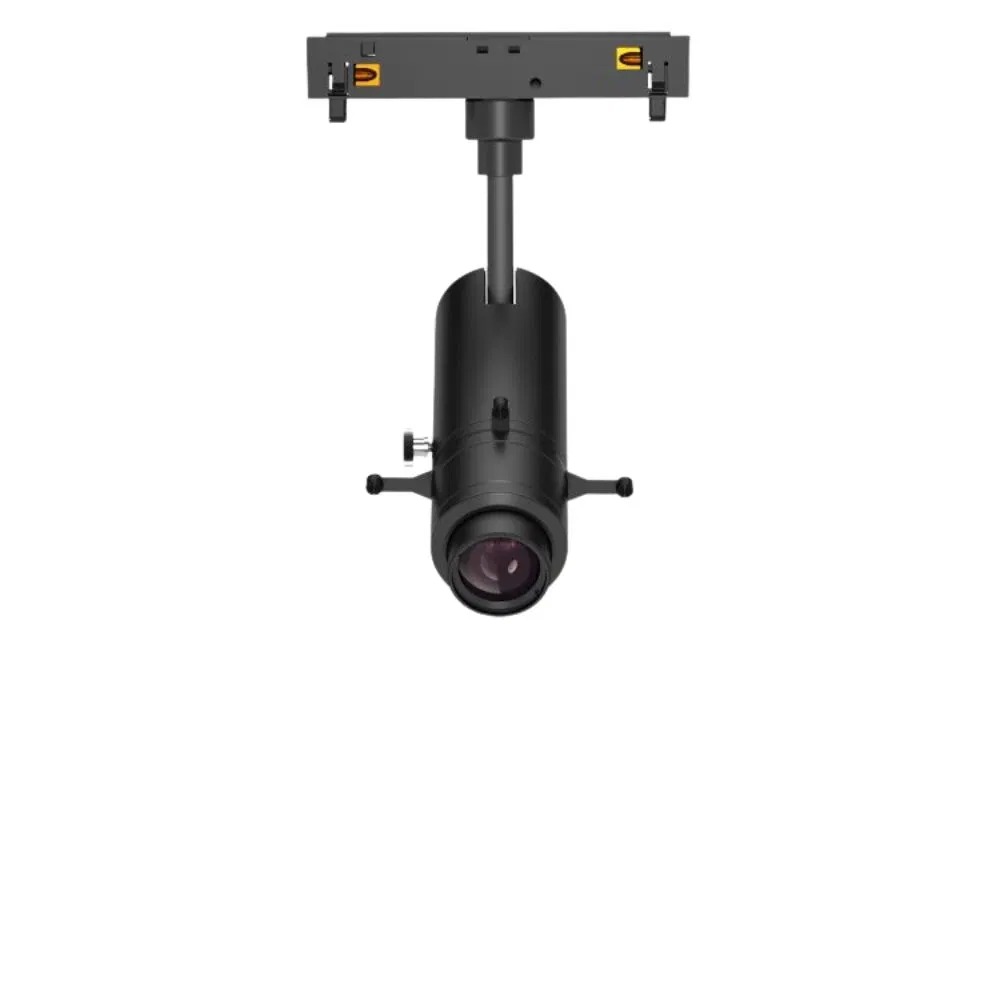

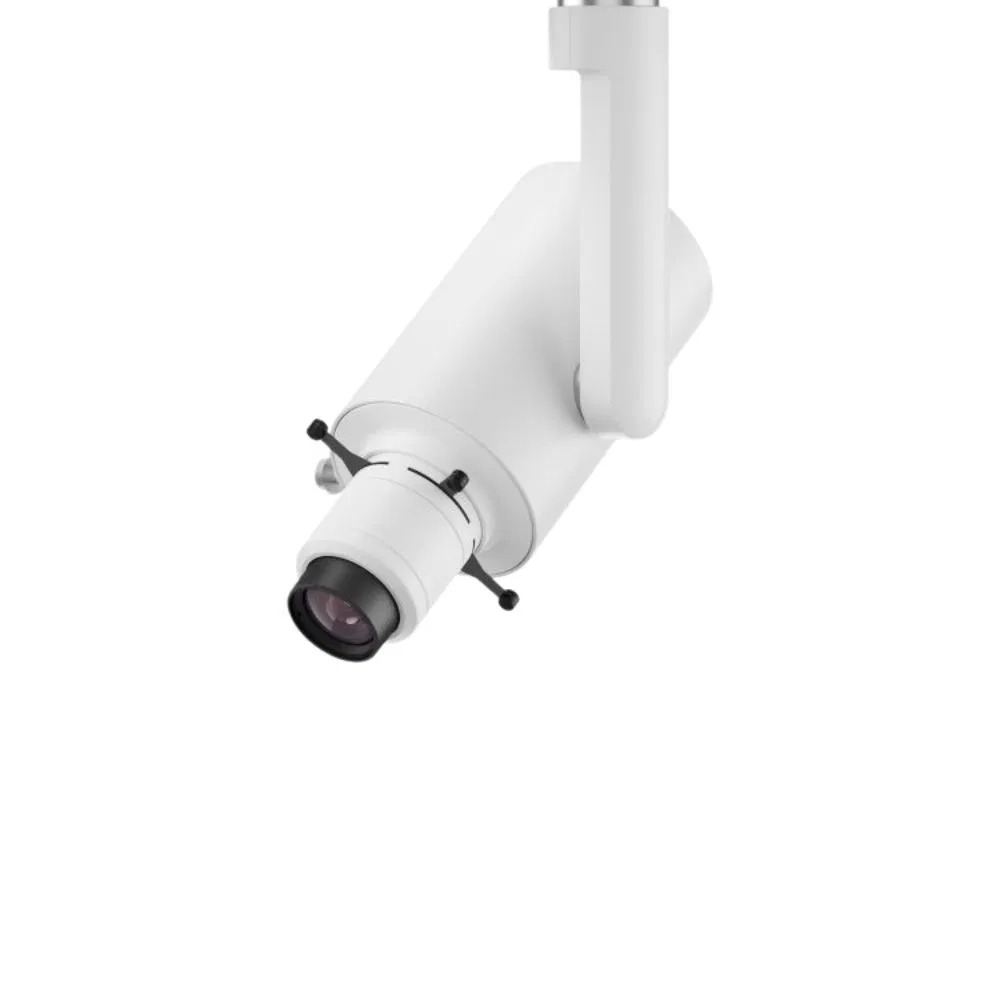

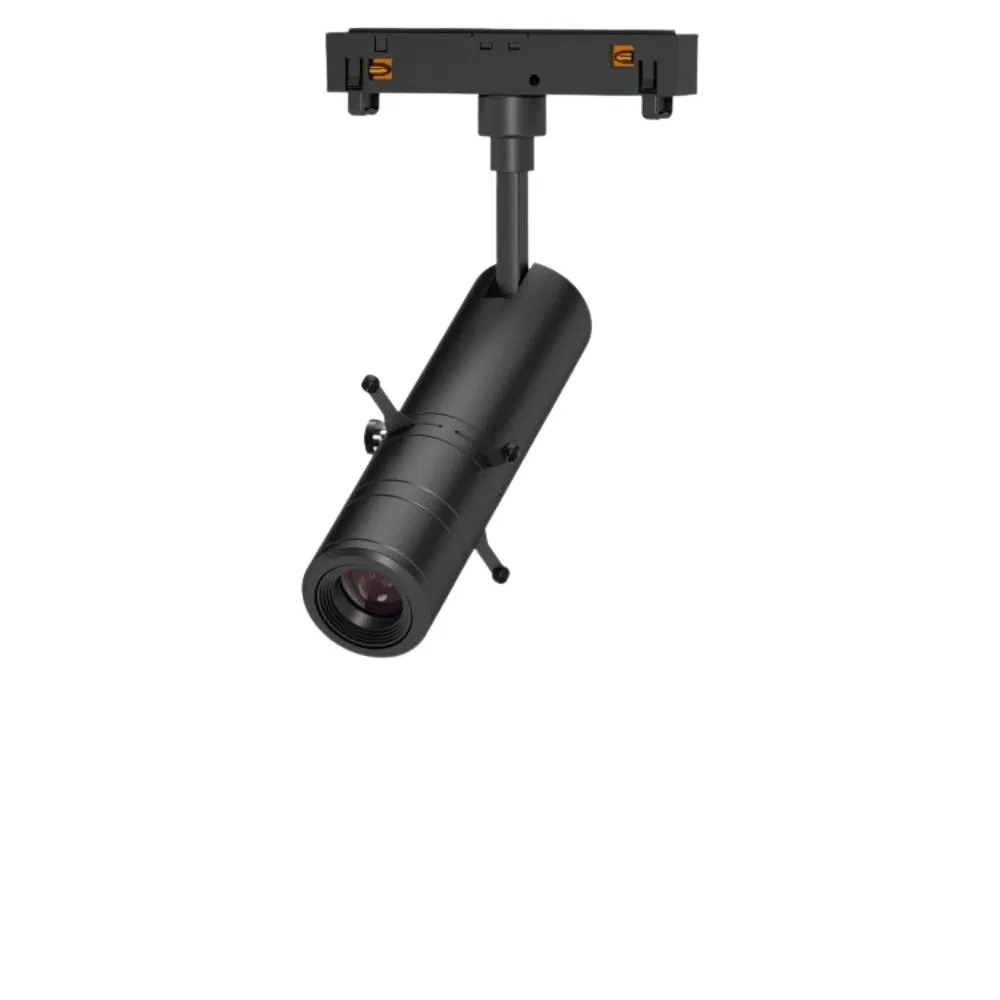

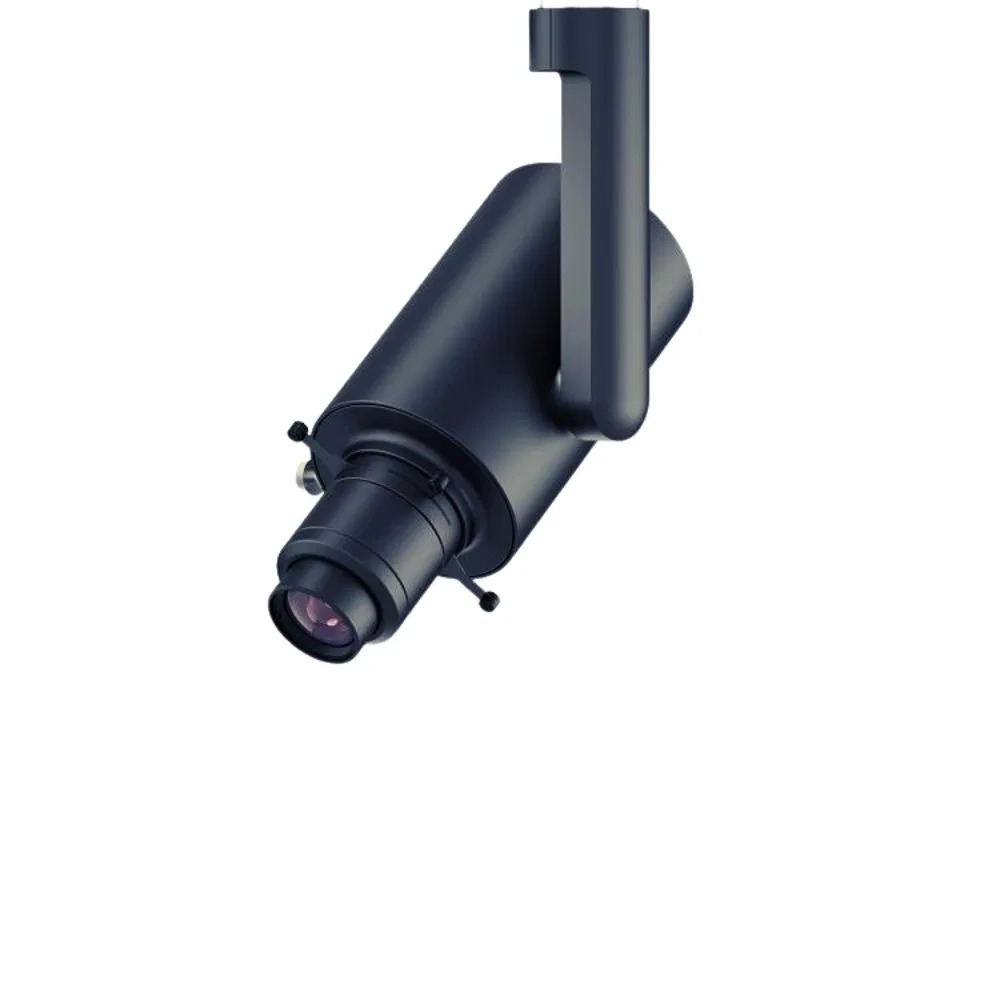

The M1003K-3836B is a professional-grade magnetic contour spotlight from Ming Feng's Kingfisher 2 Series, featuring a versatile 15°-36° zoom lens system for adjustable beam control. Delivering 300-350LM at 10W with ultra-high-definition projection (≤0.6% distortion), it offers millimeter-level precision for both spot and gobo applications. The magnetic base enables 90° vertical and 355° horizontal rotation for flexible positioning in commercial spaces. With 11 optical lenses and Ra≥97 color rendering, it ensures accurate illumination for art galleries and retail displays. Smart-ready with DALI, Bluetooth, and Zigbee compatibility, it supports tunable white (2700K-4000K) and dimming. The compact 0.36Kg design integrates seamlessly with φ38mm systems, combining professional performance with energy efficiency.
Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 1 Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 2 Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 3
Key Features
  • 55° Ultra-Wide Beam: Delivers uniform wide-angle illumination with ≤0.6% distortion, perfect for wall-washing or large exhibit lighting in museums and galleries.
  • Smart Lighting Control: Supports tunable white (2700K-4000K) via DALI, Bluetooth, or Zigbee for dynamic scene adjustments in commercial/residential spaces.
  • Magnetic Track Flexibility: Features 90° vertical/355° horizontal rotation with magnetic mounting for effortless repositioning in retail or event spaces.
  • High-Precision Optics: Equipped with 11 optical lenses for sharp gobo projections and contour lighting with 0.01/1 resolution clarity.
  • Energy-Efficient Performance: 10W power with 300-350LM output balances brightness and sustainability, ideal for long-term use.
  • Compact & Durable Design: Lightweight (0.32Kg) IP-rated housing withstands commercial environments while fitting φ38mm systems seamlessly.
Technical Specifications
Item No. M1003K - 3836B
Power 10W
Luminous Flux (3000K) 300-350LM
Beam Angle (Lens Model) Zoom 15-36° (3836B)
Color Rendering Index (Ra) 97
Input Voltage 48VDC
Housing Color Black, White
Dimensions ¢38*H149 mm
Track Type M20
Design Advantages
Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 4
Cold Forging Integrated Radiator Design
A radiator made of 1070# pure aluminum and molded by molding pressure. It has high thermal conductivity, low-temperature differences, low light failure, and long service life. Thermal conductivity 226W/m.K
360° Manual Rotation Design
360° Manual Rotation Design
Loosen the manual screw and turn the lens to achieve the 360° spot rotation adjustment function. Device to solve the 360° rotation of the projection and light spot.
Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 6
High-Definition Optical Lens Design
It is formed by a plurality of high-definition coated optical lenses. The whole lamp has the characteristics of high luminous efficiency, high spot uniformity, minor distortion, extensive linear zoom range, good spot cut-off line, etc. A new optical path specially designed for COB light sources.
Optical-Grade Variable Aperture Design
An optical diaphragm made of high-precision special material with no blurring and freezing. Manual insertion and removal of the light cutting device can freely change the shape of the spot.
Multi-Layer Dry Damping Design
The invention is a focusing device not requiring the application of lubricating oil and has a silky feel. It is stable, reliable, wear-resistant, resistant to high temperatures, and does not wear off after extended use. Rotating the device can change the sharpness of the spot.
Enhanced Linear Zoom Mechanism
Short stroke, considerable focal length, high short-focus and long-focus recognition, visible to the naked eye, linear zoom is enhanced and more convenient. Rotate the device to adjust the spot size.
Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 7 Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 8 Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 9 Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 10
Applications
Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 11 Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 12
  • Luxury Retail Lighting: Perfectly highlights high-end merchandise with its precise 55° beam and museum-grade color rendering (Ra≥97), creating dramatic product displays in boutique windows or jewelry cases.
  • Contemporary Art Galleries: Professional-grade illumination for sculptures and installations with flicker-free, distortion-controlled light that protects artworks while enhancing textures.
  • Architectural Feature Lighting: Ideal for accenting structural details in hotel lobbies or corporate spaces, offering both wide wash effects and sharp gobo projections.
  • Smart Home Integration: Seamlessly connects to home automation systems via Bluetooth/Zigbee for adjustable ambiance in premium residences - from warm dinners to focused task lighting.
  • Event & Hospitality Lighting: Creates dynamic atmospheres in restaurants or wedding venues with smooth dimming and instant CCT changes for mood transitions.
Packaging & Shipping
Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 13
Certifications
Factory Price 10W Fixed 55° Ultra-High Luminous Efficiency LED Shapeable Contour Track Light for Museums 14
Frequently Asked Questions
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on LED light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for LED light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
